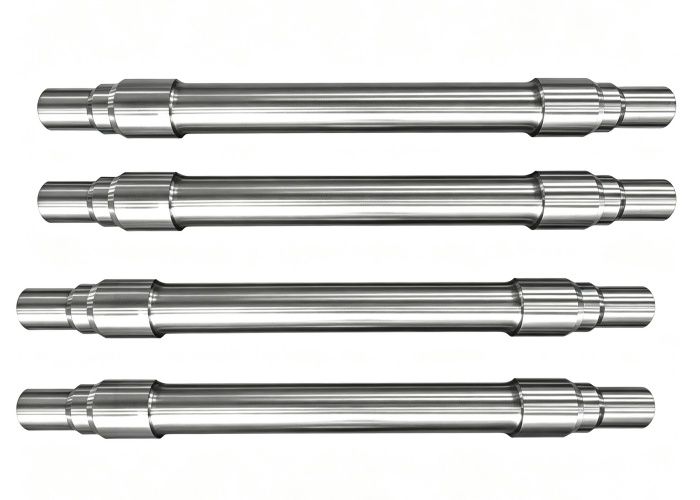

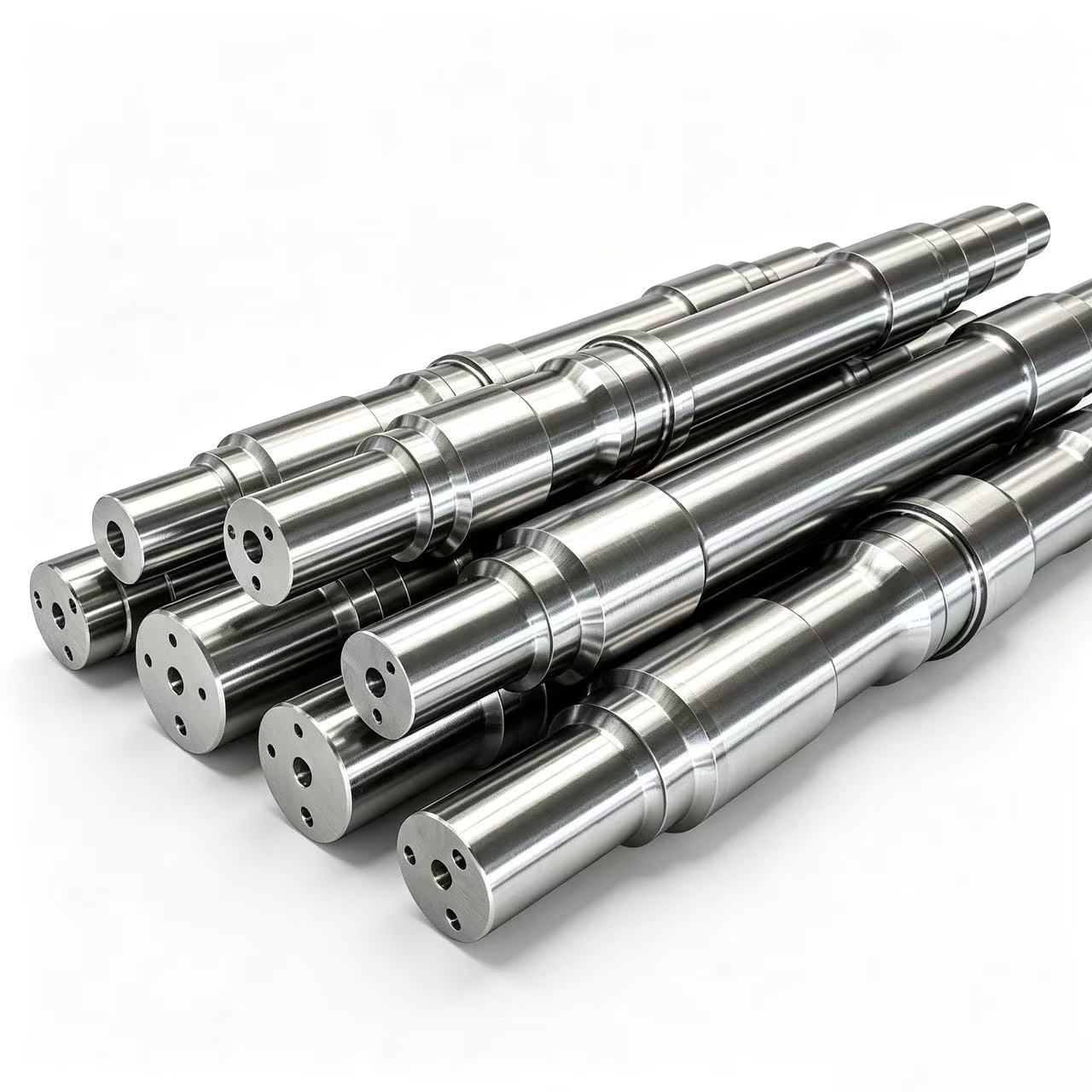

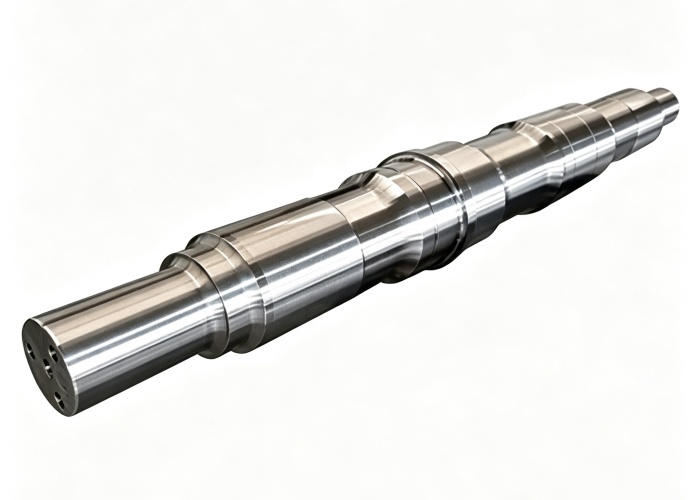

Precision Forged Railway Axle Solutions: Engineering Durability for Heavy-Duty Rail Transit

In the rail transit industry, the Railway Axle serves as the primary load-bearing and power-transmission interface for rolling stock. As the core component of the Wheelset Axle assembly, it must endure continuous alternating stress, heavy axial loads, and cyclical vibration. SAINEER specializes in the engineering and manufacturing of high-performance forged axles tailored for locomotives, freight wagons, and specialized industrial rail equipment.

1. User Decision Guidance: Addressing Critical Operational Pain Points

In heavy-duty and long-cycle rail operations, axle failure often leads to catastrophic downtime and significant safety risks. We address the three most significant industry pain points through advanced engineering:

Pain Point: Fatigue Failure Under Alternating Loads

• The Cause: Improper metallurgical structure and residual internal stress often cause axles to succumb to fatigue cracking under the intense, repeated stress of heavy freight or frequent start-stop cycles.

• The SAINEER Solution: Our axles are manufactured using high-quality alloy steel subjected to a comprehensive forging, turning, and precise heat treatment process. This sequence creates a refined, uniform grain structure that maximizes bending and fatigue resistance, ensuring the axle maintains structural integrity throughout its intended service cycle.

• Pain Point: Premature Wear of Journal and Wheel Seat Areas

• The Cause: Insufficient surface hardness and dimensional inaccuracies at the press-fit interfaces lead to localized deformation and loosening of bearings and wheels.

• The SAINEER Solution: We utilize strict dimensional tolerance control during finish machining. By ensuring precise interface geometry, we achieve an optimal press-fit assembly that prevents fretting corrosion and micro-movement, effectively extending the lifespan of both the Train Axle and the associated bearings.

• Pain Point: Incompatibility in Specialized Industrial Rail Environments

• The Cause: Standardized axles often fail to meet the niche load, gauge, or torque transmission requirements of mining locomotives or port shunting equipment.

• The SAINEER Solution: We provide full non-standard customization. We optimize the axle design—whether straight, stepped, or hollow—based on your specific load parameters, track gauge, and operating speed, ensuring perfect compatibility with your existing Rail Bogie Axle system.




2. Technical Specifications and Value Translation

3. Product Advantage Comparison

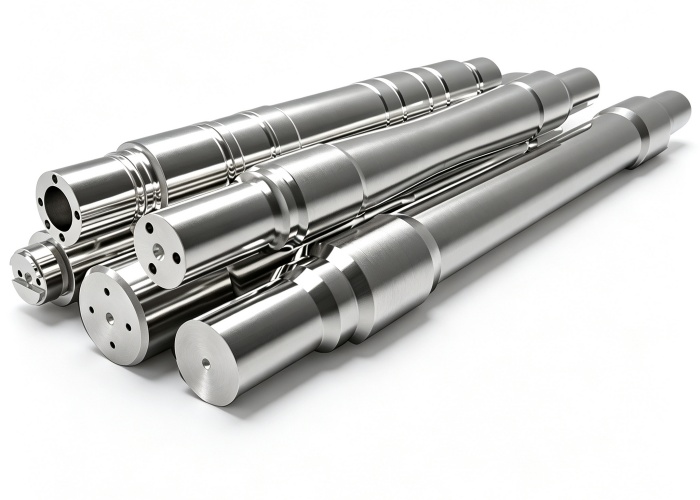

The reliability of a Locomotive Axle is determined by the control of internal defects and structural consistency.

• SAINEER Forged Axles vs. Commodity Standard Axles: Many low-cost axles are produced via casting or inferior forging processes, leaving internal porosity and structural inconsistencies that are invisible until a failure occurs. Our dedicated forging process guarantees a compact, uniform internal structure, significantly improving the fatigue life of the Rail Bogie Axle under heavy loads.

• Precision CNC Finishing vs. Mass-Produced Alternatives: Standard axles often suffer from assembly inaccuracies due to loose tolerance control. Our finish machining process ensures that every journal and wheel seat diameter meets exact specifications, eliminating the "loose-fit" vibrations that degrade performance in high-speed or high-vibration environments.

4. Real-World Application Scenarios

• Heavy-Haul Freight Logistics: Operating under constant 25-ton+ axle loads, our axles are designed for the high bending moments inherent in freight operations, preventing deformation during long-distance transits.

• Underground Mining & Industrial Locomotives: Mining environments introduce abrasive debris and high shock loads. Our axles utilize high-toughness alloy steel to withstand the harsh, uneven track conditions typically found in tunnel and industrial park environments.

• Metro & Passenger Transit: In passenger transit, stability and vibration damping are critical. Our precisely balanced, high-strength axles minimize radial runout, ensuring a smoother ride and reducing wear on the entire Wheelset Axle system.

5. Company Capability Data

SAINEER maintains a technical production environment focused on industrial-grade reliability:

• Dimensional Integrity: Every Train Axle undergoes comprehensive gauging to verify that journals, wheel seats, and center distances meet customer-provided drawings within strictly defined tolerances.

• Flaw Detection Infrastructure: Our production line includes 100% UT (Ultrasonic Testing) and MT (Magnetic Particle) inspection to detect sub-surface inclusions or structural irregularities.

• Certification Readiness: All manufacturing processes are configured to align with UIC, EN, AAR, and TB/T international railway standards, facilitating global logistics, customs clearance, and technical verification for project bidding.

6. Industry Standards and Compliance

We manufacture all axle components in accordance with recognized international railway standards. Our adherence to these protocols ensures that our products are compatible with global rail transit infrastructure. Whether for North American AAR regulated lines or European EN/UIC standards, our technical documentation and testing protocols provide the necessary verification for engineers and procurement authorities.

7. Quality Assurance and Performance Verification

The performance of our axles is backed by consistent mechanical testing. Every finished unit is accompanied by a factory test certificate, which includes:

• Chemical composition reports.

• Mechanical property tests (Tensile, Yield, Impact, and Hardness).

• Records of 100% Non-Destructive Testing (NDT) confirming the absence of internal flaws.

•


8. Frequently Asked Questions (FAQ)

Q1: Can you produce custom axles that are not based on standard UIC/AAR dimensions?

A1: Yes. We specialize in fully non-standard customization, including hollow, stepped, and special-shaped axles designed specifically to meet your equipment's unique load and geometry requirements.

Q2: What non-destructive testing (NDT) do you perform on your axles?

A2: We perform 100% Ultrasonic Testing (UT) to check for internal defects and 100% Magnetic Particle Inspection (MT) to ensure the surface is free of cracks or inclusions.

Q3: How do you ensure the axle will fit our existing bogie components?

A3: We request your detailed technical drawings or specifications for the journal diameter, wheel seat size, and center distance. Our machining process ensures tolerances are maintained exactly to these specifications for a perfect press-fit assembly.

Q4: Do you support small-batch production for prototype testing?

A4: Yes. We support small-batch sample customization, allowing our clients to validate our axle performance before committing to large-scale production orders.

Q5: What documentation is provided for international project bidding?

A5: We provide a comprehensive package including factory test certificates, chemical analysis, mechanical performance data, and full NDT inspection records, which are essential for customs clearance and technical verification by railway authorities.
