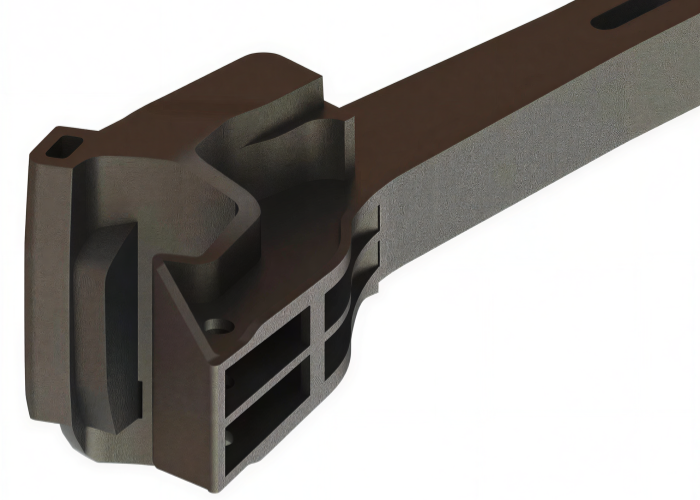

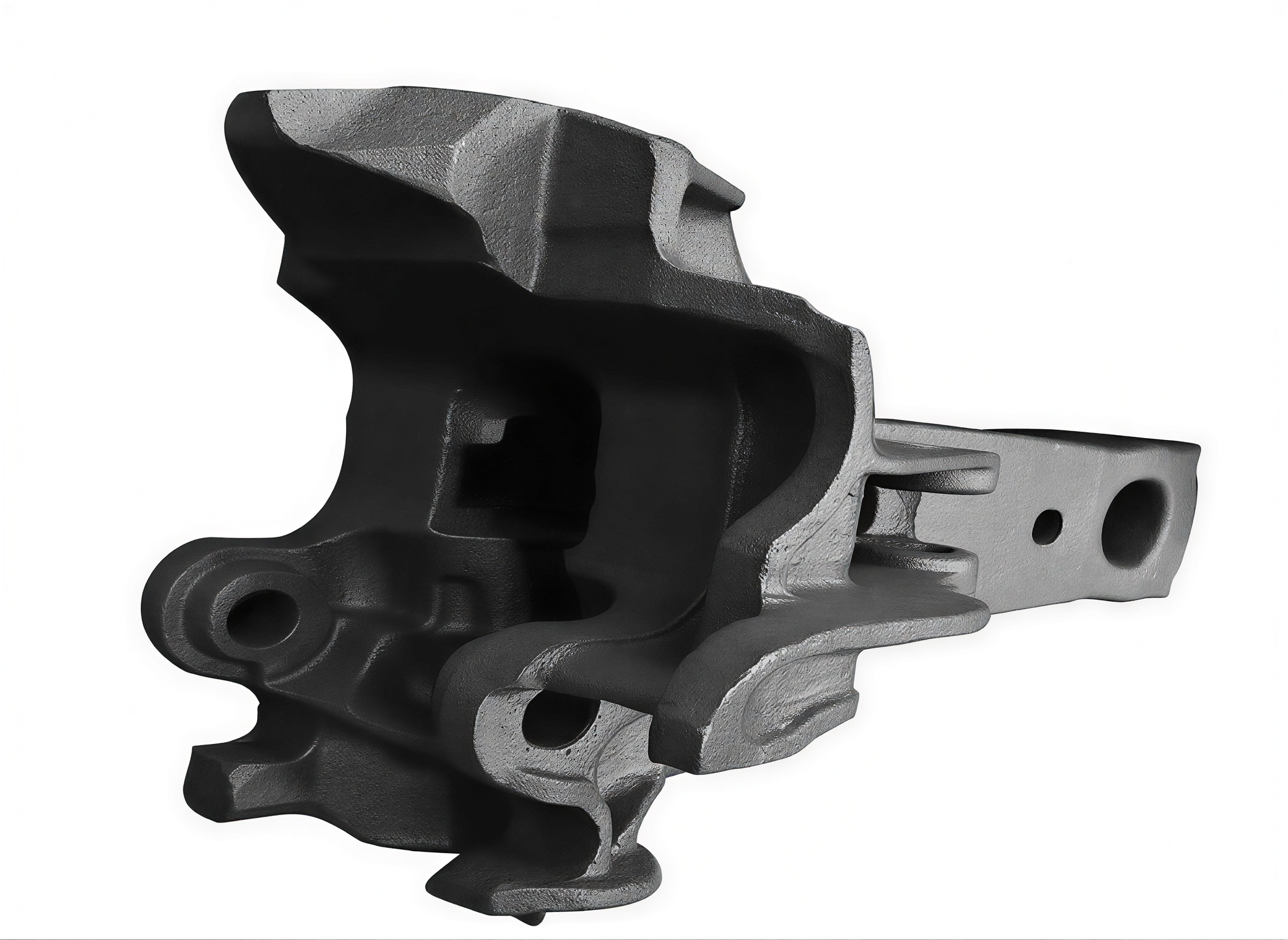

SAINEER Semi-Automatic Knuckle Coupler: Heavy-Duty Coupling for Industrial Rail

 1.User Decision Guide: Addressing Core Industrial Pain Points

In the high-intensity environment of factory yards, mines, and logistics hubs, the mechanical connection between rail vehicles is the most stressed component in the system. Through our engineering analysis of global industrial shunting operations, we have identified three critical pain points for B2B procurement managers and engineered specific solutions within our SAINEER Semi-Automatic Knuckle Coupler.

Pain Point 1: Severe Safety Risks and Operational Inefficiency During Coupling
Traditional manual coupling systems require staff to stand directly between carriages to insert pins or links, creating a high risk of injury during frequent shunting and start-stop cycles.

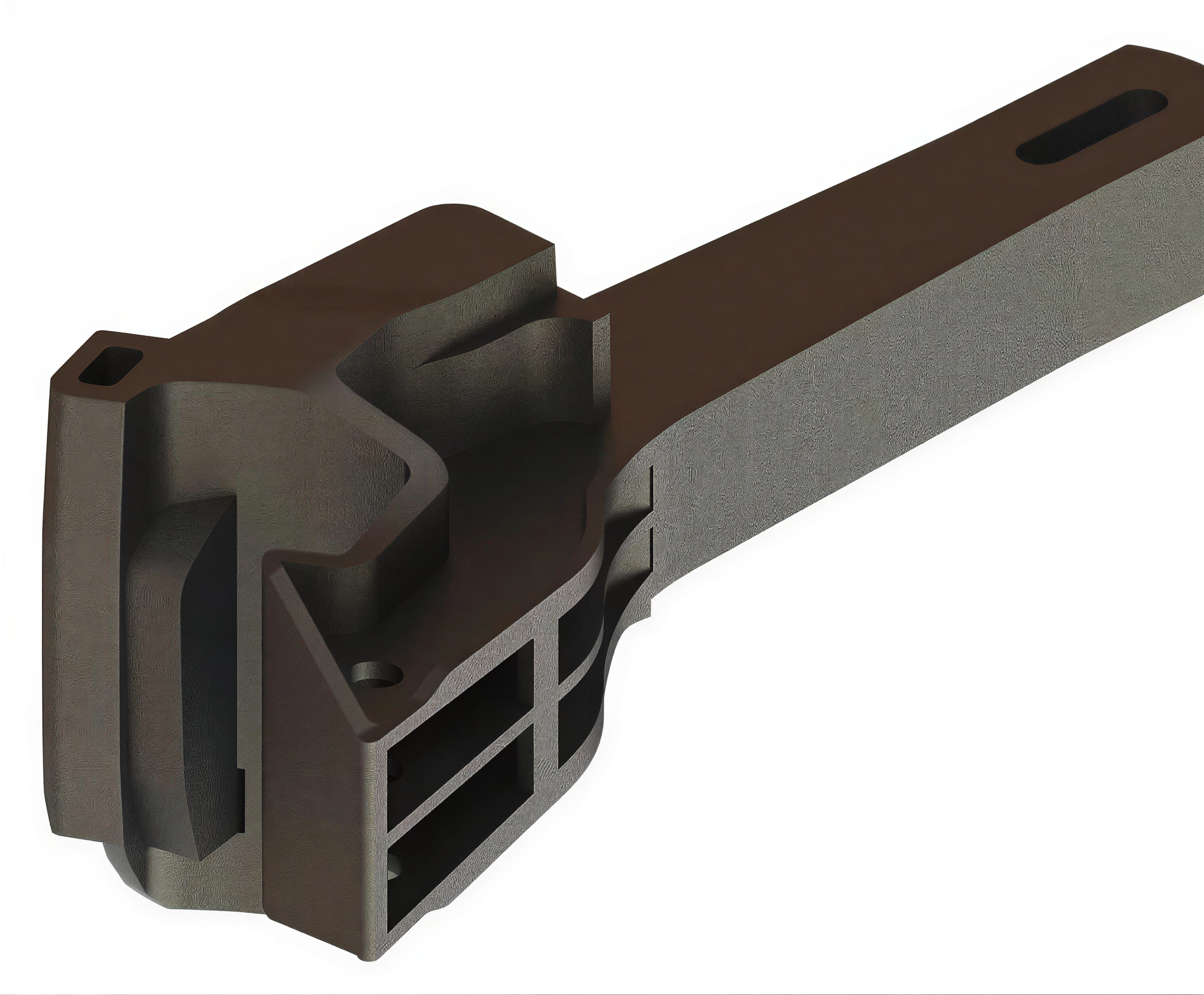

Expert Solution: Our Heavy Duty Industrial Shunting Locomotive Knuckle Coupler adopts the proven Janney knuckle self-locking structure. Vehicles auto-lock upon collision, and only a manual side lever is required for unlocking. This design eliminates the need for staff to stand between carriages, greatly improving yard operation safety and accelerating coupling times.

Pain Point 2: Structural Fatigue and Component Damage from Impact Forces
Industrial shunting involves frequent hard bumping and heavy traction impacts. Standard couplers without adequate shock absorption transfer these massive forces directly to the locomotive frame, bogies, and wheelsets, leading to premature fatigue cracks and expensive repairs.

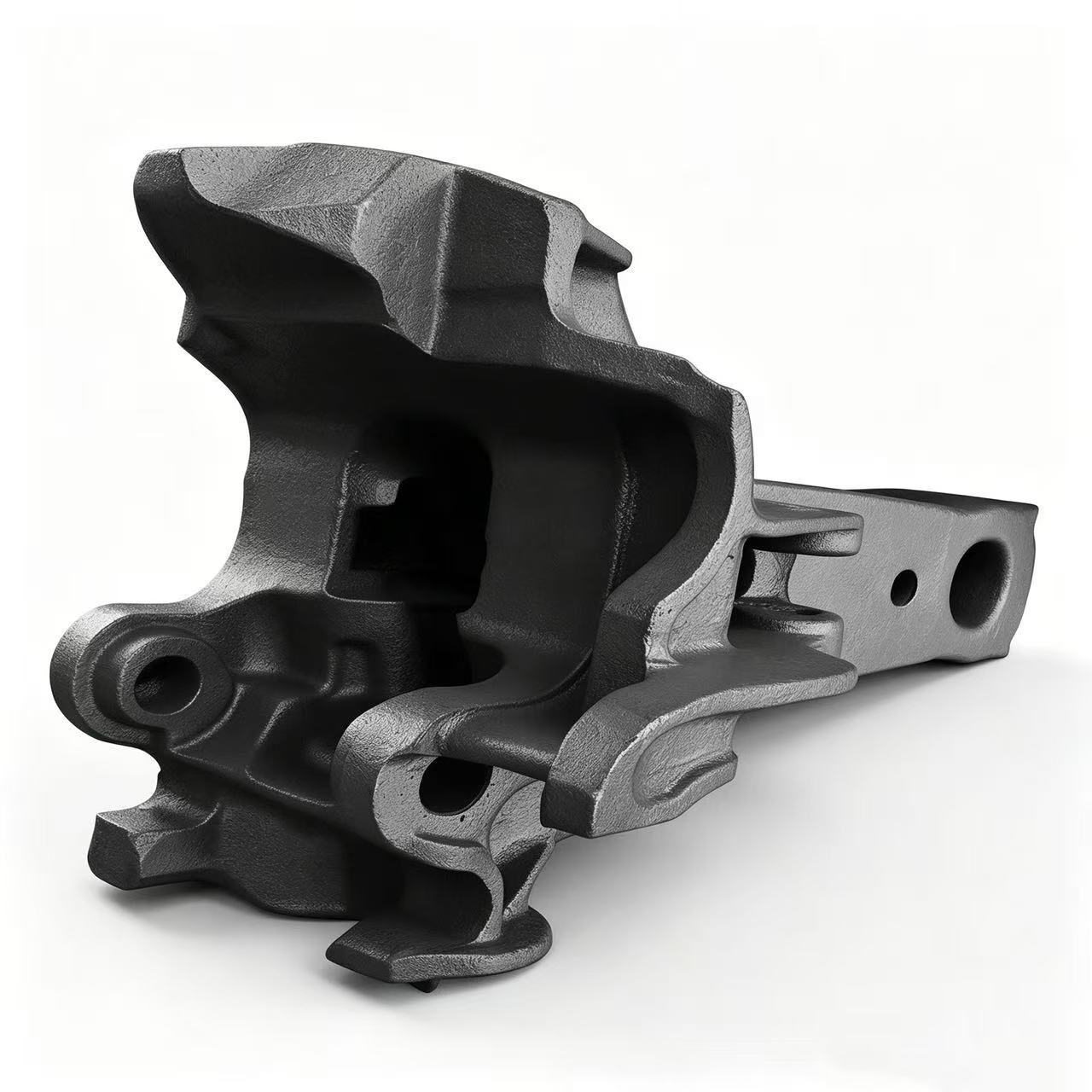

Expert Solution: This unit is engineered as a Low Speed Yard Traction Coupler With Integrated Draft Gear. It features a built-in heavy-duty shock absorption draft gear (with optional spring or hydraulic buffers) that effectively absorbs huge impact forces. This protects the bogie, wheelset, and axle gearbox from collision damage, significantly reducing the maintenance cycle.

Pain Point 3: Derailment Risks on Small-Curve Factory Tracks
Factory and mine tracks often feature tight curves and uneven surfaces. Standard couplers lacking anti-climbing features can disengage or cause derailments during hard bumping on these small-radius tracks.
Expert Solution: The Forged Steel Janney Coupler For Factory Heavy Haul Rail Vehicle incorporates a standard anti-climbing protruding structure. This geometric safety feature prevents vertical disengagement during impacts, avoiding derailment risks and ensuring stable operation on complex industrial track layouts.

2. Product Technical Specifications & Value Translation

The following table outlines the core technical parameters of the SAINEER Semi-Automatic Knuckle Coupler, translating engineering data into tangible business value for procurement managers.

3. Product Advantage Comparison: Differentiated Competition

To understand the superiority of the SAINEER Semi-Automatic Knuckle Coupler, it is essential to compare it against generic market alternatives often found in the B2B supply chain.

Generic Competitor Design: Many standard suppliers offer basic knuckle couplers made from standard cast steel with minimal heat treatment. These units often lack integrated draft gears, requiring separate buffer installations that increase assembly complexity. Furthermore, they frequently omit anti-climbing structures, making them unsafe for the tight curves and hard impacts typical of industrial yards.

SAINEER Differentiated Design: Our Heavy Duty Industrial Shunting Locomotive Knuckle Coupler is built on a "Safety-First" and "System Integration" philosophy. Firstly, we utilize integral forging and tempering to achieve a tensile strength of ≥830MPa, ensuring superior resistance to fatigue and cracks. Secondly, the Low Speed Yard Traction Coupler With Integrated Draft Gear combines the mechanical lock and shock absorption into a single modular split assembly, allowing for quick disassembly and worn parts replacement. Finally, the unified mounting base size ensures it is interchangeable with mainstream industrial locomotive brands worldwide, simplifying fleet maintenance.

4. Real-World Application Scenarios

The versatility of the Forged Steel Janney Coupler For Factory Heavy Haul Rail Vehicle is demonstrated across diverse heavy-industry sectors:

Metallurgical & Steel Plants: In high-heat smelting workshops, our high-temperature resistant customized versions are deployed on heavy haul rail vehicles. The integrated draft gear absorbs the massive shocks generated when moving molten steel ladles, while the anti-climbing structure ensures safety on the tight cross-operation tracks within the factory.

Underground Mines & Chemical Parks: For gas-containing underground mine tunnels and chemical hazardous parks, we provide explosion-proof sealed type couplers. These units prevent the ingress of hazardous gases and dust, ensuring reliable auto-locking and safe shunting operations in strictly regulated explosive environments.

Ports & Logistics Yards: In coastal logistics hubs, our anti-corrosion coated versions withstand the harsh salt fog environment. The SAINEER Semi-Automatic Knuckle Coupler handles the frequent start-stop cycles of port container shunting locomotives, protecting the traction wheelsets and axle gearboxes from the constant lateral and longitudinal impacts.

5. Corporate Strength: Data-Driven Manufacturing Capability

SAINEER’s manufacturing prowess is defined by measurable industrial capabilities. Our production facility maintains a dedicated R&D and manufacturing focus on industrial rail running gear and traction systems. We possess the engineering capacity to produce high-strength integral cast steel coupler bodies, utilizing integral forging and tempering heat treatment protocols to guarantee a tensile strength of ≥830MPa.

Our quality assurance infrastructure ensures that every Heavy Duty Industrial Shunting Locomotive Knuckle Coupler meets strict dimensional tolerances. This vertical integration capability enables us to support OEM customization for multiple versions (high temperature, explosion-proof, anti-corrosion) and various track gauges (600/762/900/1435mm), catering to the specific 30t–150t load requirements of global industrial clients.

6. Industry Standards & Compliance

While specific exhibition records are proprietary, the design and manufacturing processes of the Low Speed Yard Traction Coupler With Integrated Draft Gear adhere to stringent international industrial rail standards. Our products are engineered to meet the rigorous safety and performance requirements necessary for operation in regulated environments such as underground mines (explosion-proof standards) and chemical industrial parks (corrosion resistance standards). The Janney knuckle self-locking structure aligns with global best practices for heavy-duty rolling stock components, ensuring compatibility and safety for international B2B buyers.

7. Social Proof: Reliability Through Engineering

The reliability of the Forged Steel Janney Coupler For Factory Heavy Haul Rail Vehicle is evidenced by its sustained performance in continuous shunting operational cycles. In industries such as steel manufacturing and mining, where equipment failure directly halts production lines, our couplers have demonstrated exceptional durability. The combination of ≥830MPa tensile strength and integrated heavy-duty shock absorption has resulted in significantly reduced maintenance cycles for fleet operators. Buyers consistently recognize the value of our one-stop complete set supply, which perfectly matches SAINEER powered bogies, traction wheelsets, and axle gearboxes, eliminating the technical risks associated with mixing components from multiple vendors.

8. Frequently Asked Questions (FAQ)

Q1: What is the maximum operating speed for the SAINEER Semi-Automatic Knuckle Coupler?
A: The maximum operating speed is strictly capped at ≤100km/h. This Heavy Duty Industrial Shunting Locomotive Knuckle Coupler is exclusively designed for low-speed industrial shunting and is not applicable for high-speed trains, metro, or EMU rolling stock.

Q2: How does the coupler handle heavy impact forces during shunting?
A: It is designed as a Low Speed Yard Traction Coupler With Integrated Draft Gear. It features a built-in heavy-duty shock absorption draft gear (optional spring or hydraulic buffer) that effectively absorbs huge impact forces, protecting the bogie, wheelset, and axle gearbox from collision damage.

Q3: Is the coupler body durable enough for long-term heavy traction?
A: Yes. The Forged Steel Janney Coupler For Factory Heavy Haul Rail Vehicle uses a high-strength integral cast steel body with integral forging and tempering heat treatment. This achieves a tensile strength of ≥830MPa, ensuring it is anti-fatigue and crack-resistant under long-time heavy traction impacts.

Q4: Can this coupler be customized for harsh environments like steel mills or mines?
A: Absolutely. We offer multiple customized versions, including high-temperature resistant types for steel smelting workshops, explosion-proof sealed types for gas mines and chemical hazardous parks, and anti-corrosion coatings for port salt fog environments.

Q5: Is it compatible with other industrial locomotive brands?
A: Yes. The SAINEER Semi-Automatic Knuckle Coupler features a modular split assembly design with a unified mounting base size, making it interchangeable with mainstream industrial locomotive brands worldwide. It also perfectly matches SAINEER powered bogies and axle gearboxes for one-stop supply.
