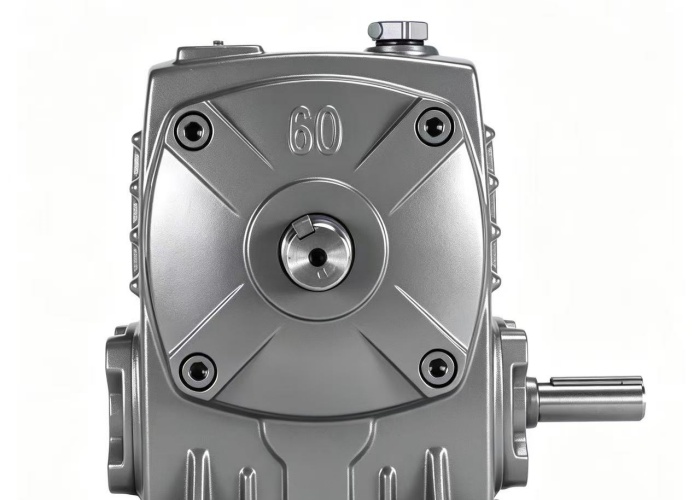

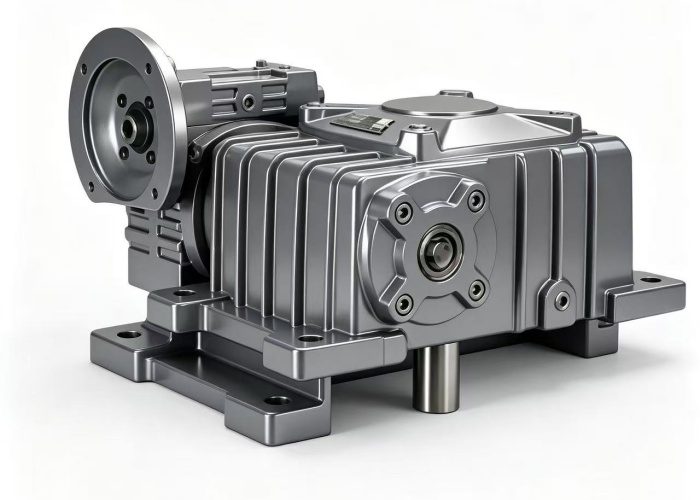

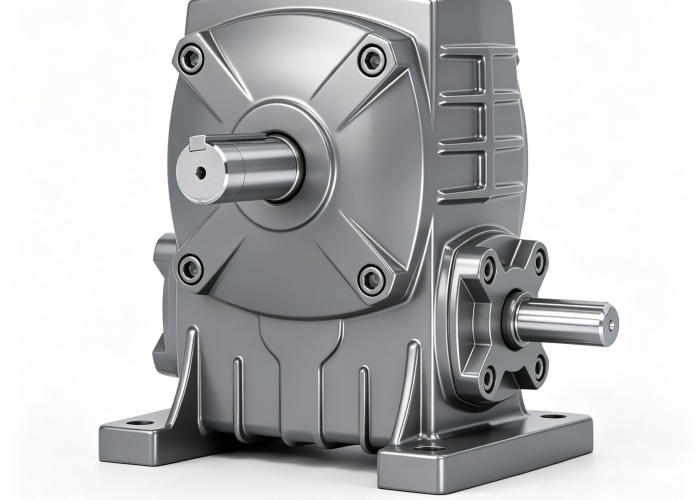

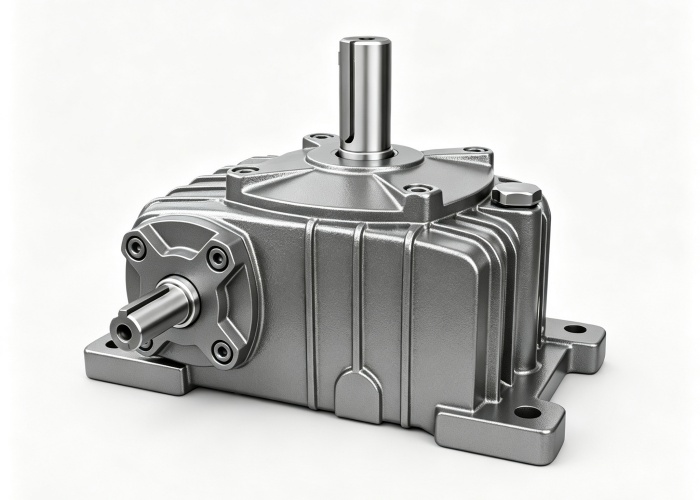

Aluminum Right Angle Worm Gear Reducer

The whole housing is made of high-strength die-cast aluminum alloy, featuring light weight, fast heat dissipation and beautiful appearance. With full independent structural optimization by Saineer R&D team, this series covers complete frame sizes and wide ratio range, suitable for light and medium load continuous operation in automation, packaging, logistics and general machinery industries.

Core Advantages

1. 90° Right Angle Compact Transmission

Vertical input and output layout saves installation space, perfect for narrow-space mechanical assembly.

2. Excellent Self-Locking Function

Good reverse self-locking performance prevents equipment back rotation, greatly improving mechanical safety for lifting and positioning equipment.

3. Lightweight Aluminum Alloy Housing

Die-cast aluminum shell provides fast heat dissipation, high rigidity, anti-corrosion and long service life.

4. High Wear Resistance & Quiet Operation

Worm wheel adopts high-strength tin bronze material; worm gear is carburized and precision ground. Smooth meshing ensures low noise, low vibration and strong wear resistance.

5. Ultra-wide Reduction Ratio Range

Single stage ratio from 5:1 to 100:1, easy to achieve low speed and high torque output without multi-stage combination.

6. Flexible Installation & Strong Versatility

Support horizontal, vertical, flange mounting, solid/hollow shaft output. Easy to match motors, stepper motors and servo motors.

Main Application Industries

Packaging machinery, food equipment, conveyor systems, printing machinery, textile machinery, automation lines, environmental equipment, small lifting machinery and general industrial transmission.

Compliance Statement

Saineer NMRV/NRV/RV worm gear reducers are independently developed and manufactured. The series codes are only general industrial structural classification and do not belong to any third-party brand exclusive model. All appearance, mold and internal transmission design belong to Saineer proprietary intellectual property rights.

Saineer self-developed NMRV NRV RV series aluminum worm gear reducer is a compact 90-degree right angle speed reduction unit with self-locking function. Featuring lightweight aluminum housing, low noise, high torque and wide reduction ratio, it is widely used for packaging, conveyor, automation and general industrial machinery with fully independent non-infringement design.
